EDeel E · Properties

Hoofdstuk 52Render

De volledige naslagtabel: render engine, sampling, performance en Cycles

De Render Properties-tab (renderinstellingen) bepaalt hoe Blender een beeld berekent: welke render engine, hoeveel samples, welke apparaten, en tientallen instellingen die alleen zichtbaar worden zodra je Cycles kiest. Dit hoofdstuk is grotendeels een naslagblad: elke instelling is rechtstreeks uit Blender 5.1 uitgelezen.

3× uitleg1× ontleed2× naslag1× zelf doen1 oefenbestand4 beelden

RECCONCEPT00:00:00:00schoolium

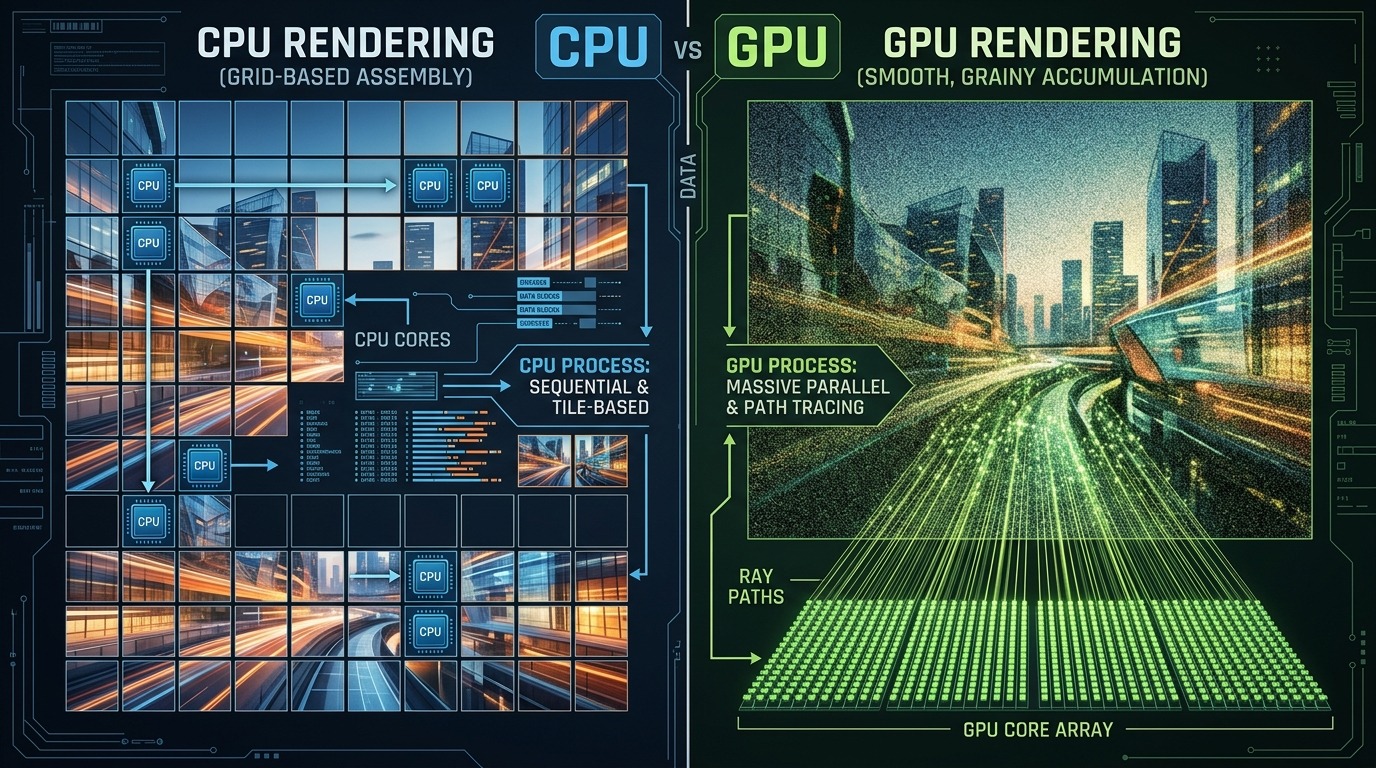

beeld-e-cpu-vs-gpuCPU- en GPU-rendering naast elkaar: hetzelfde beeld, andere weg ernaartoe.

Uitleg · 52.1

Wat deze tab doet

1/7

De Render Properties-tab (renderinstellingen) staat in de Properties-editor onder het camera-icoon. Alles hier bepaalt de render als geheel, niet de scene of één object: welke render engine (EEVEE Next of Cycles), hoeveel samples er gebruikt worden om ruis weg te werken, welk device (CPU of GPU) rendert, en performance-knoppen zoals tile-grootte.

Een deel van de panelen verandert mee met de gekozen engine: EEVEE Next toont andere opties dan Cycles. De tabellen hieronder bevatten daarom eerst de algemene renderinstellingen, en daarna apart de Cycles-specifieke instellingen (deel K gaat dieper in op wat elke Cycles- en EEVEE-instelling in de praktijk doet).

shot-render-propertiesDe Render Properties-tab, opengeklapt met Cycles als render engine.

Ontleed · 52.2

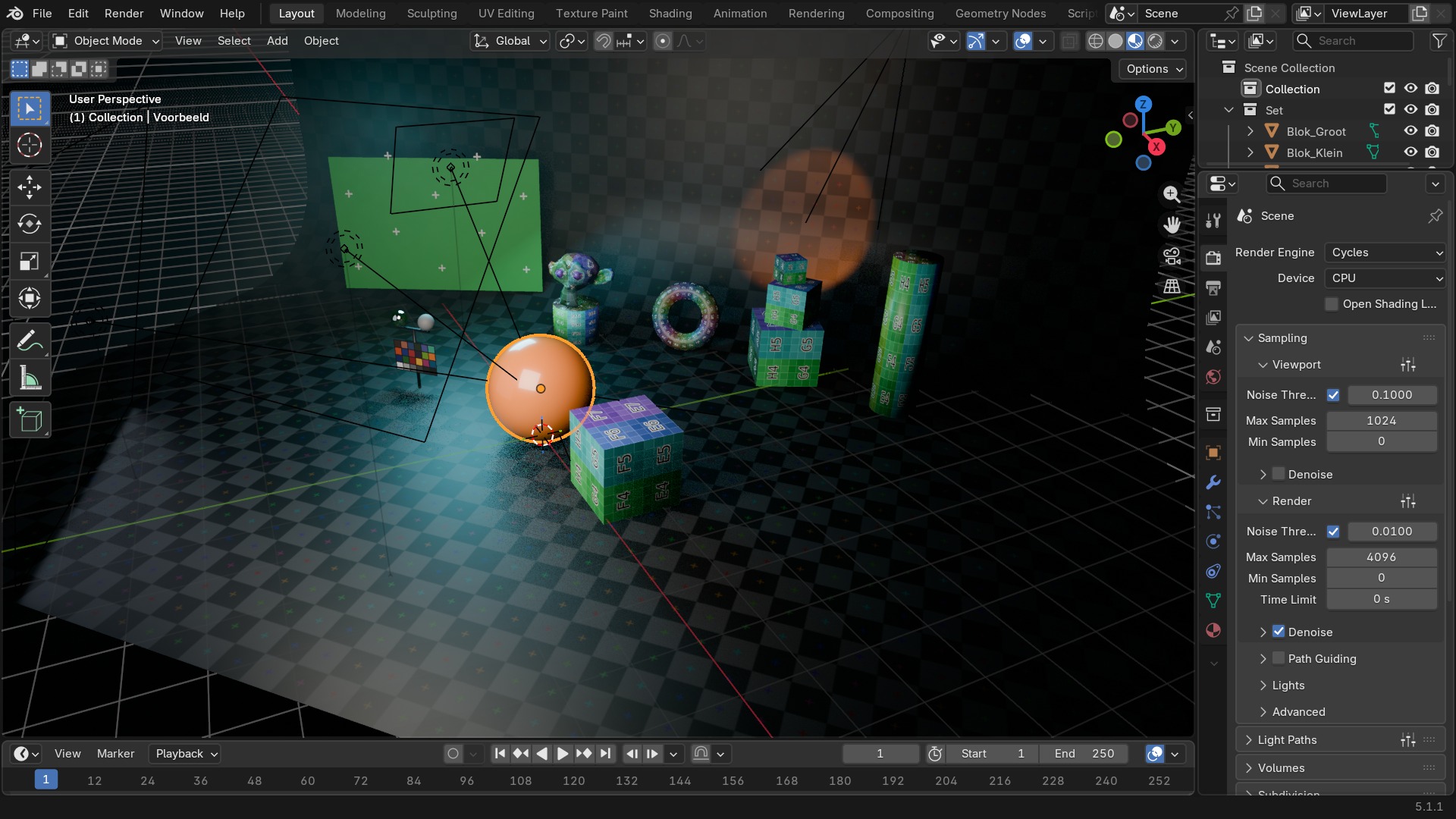

De Render-tab, paneel per paneel

2/7

Wijs een nummer aan: de camera zoomt in op dat onderdeel. Klik om vast te zetten.

1
Render Engine
De keuze bovenaan die bepaalt welke van de panelen eronder verschijnen.
2
Sampling
Hoeveel keer per pixel er gerekend wordt — de belangrijkste knop tussen ruis en rendertijd.
3
Light Paths / Raytracing
Hoeveel keer licht mag kaatsen, breken of door glas gaan voor het wordt afgekapt — het ingeklapte paneel onderaan dit schermdeel.
4
Performance
Threads, tile-grootte, geheugenbeheer — bepaalt hoe snel dezelfde instellingen renderen. Dit paneel staat verder naar onder, buiten dit schermdeel.
5
Film & Freestyle
Transparantie van de achtergrond, motion blur, en de tekenlijnstijl van Freestyle. Ook dit paneel staat verder naar onder, buiten dit schermdeel.

Naslag · 52.3

Alle renderinstellingen

3/7

Rechtstreeks uit Blender 5.1 uitgelezen.

Render — alle instellingen
Instelling	Type	Standaard	Bereik	Wat hij doet (tooltip uit Blender)
Resolution X	INT	1920	4 – 65536	Number of horizontal pixels in the rendered image
Resolution Y	INT	1080	4 – 65536	Number of vertical pixels in the rendered image
Resolution Scale	INT	100	1 – 100	Percentage scale for render resolution
Pixel Size	ENUM	AUTO	Automatic, 1×, 2×, 4×, 8×	Pixel size for viewport rendering
Pixel Aspect X	FLOAT	1	1 – 200	Horizontal aspect ratio - for anamorphic or non-square pixel output
Pixel Aspect Y	FLOAT	1	1 – 200	Vertical aspect ratio - for anamorphic or non-square pixel output
PPM Factor	FLOAT	72	0.00010 – 10000	The pixel density meta-data written to supported image formats. This value is multiplied by the PPM-base which defines the unit (typically inches or meters)
PPM Base	FLOAT	0.025	0.00010 – 10000	The base unit for pixels per meter.
FPS	INT	24	1 – 240	Framerate, expressed in frames per second
FPS Base	FLOAT	1	0.1 – 120	Framerate base
Frame Map Old	INT	100	1 – 900	Old mapping value in frames
Frame Map New	INT	100	1 – 900	How many frames the Map Old will last
Dither Intensity	FLOAT	1	0 – 2	Amount of dithering noise added to the rendered image to break up banding
Filter Size	FLOAT	1.5	0.01 – 10	Width over which the reconstruction filter combines samples
Transparent	BOOLEAN	uit	–	World background is transparent, for compositing the render over another background
Use Freestyle	BOOLEAN	uit	–	Draw stylized strokes using Freestyle
Threads	INT	1	1 – 1024	Maximum number of CPU cores to use simultaneously while rendering (for multi-core/CPU systems)
Threads Mode	ENUM	AUTO	Auto-Detect, Fixed	Determine the amount of render threads used
Motion Blur	BOOLEAN	uit	–	Use multi-sampled 3D scene motion blur
Shutter	FLOAT	0.5	0.01 – 1	Time taken in frames between shutter open and close
Motion Blur Position	ENUM	CENTER	Start on Frame, Center on Frame, End on Frame	Offset for the shutter's time interval, allows to change the motion blur trails
Curves Shape Type	ENUM	STRAND	Strand, Strip, Cylinder	Curves shape type
Additional Subdivision	INT	0	0 – 3	Additional subdivision along the curves
High Quality Normals	BOOLEAN	uit	–	Use high quality tangent space at the cost of lower performance
Render Region	BOOLEAN	uit	–	Render a user-defined render region, within the frame size
Region Minimum X	FLOAT	0	0 – 1	Minimum X value for the render region
Region Minimum Y	FLOAT	0	0 – 1	Minimum Y value for the render region
Region Maximum X	FLOAT	1	0 – 1	Maximum X value for the render region
Region Maximum Y	FLOAT	1	0 – 1	Maximum Y value for the render region
Crop to Render Region	BOOLEAN	uit	–	Crop the rendered frame to the defined render region size
Placeholders	BOOLEAN	uit	–	Create empty placeholder files while rendering frames (similar to Unix 'touch')
Overwrite	BOOLEAN	aan	–	Overwrite existing files while rendering
Compositing	BOOLEAN	aan	–	Process the render result through the compositing pipeline, if a compositing node group is assigned to the scene
Sequencer	BOOLEAN	aan	–	Process the render (and composited) result through the video sequence editor pipeline, if sequencer strips exist
File Extensions	BOOLEAN	aan	–	Add the file format extensions to the rendered file name (eg: filename + .jpg)
Extension	STRING	–	–	The file extension used for saving renders
Movie Format	BOOLEAN	uit	–	When true the format is a movie
Lock Interface	BOOLEAN	uit	–	Lock interface during rendering in favor of giving more memory to the renderer
Output Path	STRING	–	–	Directory/name to save animations, # characters define the position and padding of frame numbers
Cache Result	BOOLEAN	uit	–	Save render cache to EXR files (useful for heavy compositing, Note: affects indirectly rendered scenes)
Stamp Time	BOOLEAN	aan	–	Include the rendered frame timecode as HH:MM:SS.FF in image metadata
Stamp Date	BOOLEAN	aan	–	Include the current date in image/video metadata
Stamp Frame	BOOLEAN	aan	–	Include the frame number in image metadata
Stamp Frame	BOOLEAN	uit	–	Include the rendered frame range in image/video metadata
Stamp Camera	BOOLEAN	aan	–	Include the name of the active camera in image metadata
Stamp Lens	BOOLEAN	uit	–	Include the active camera's lens in image metadata
Stamp Scene	BOOLEAN	aan	–	Include the name of the active scene in image/video metadata
Stamp Note	BOOLEAN	uit	–	Include a custom note in image/video metadata
Stamp Marker	BOOLEAN	uit	–	Include the name of the last marker in image metadata
Stamp Filename	BOOLEAN	aan	–	Include the .blend filename in image/video metadata
Stamp Sequence Strip	BOOLEAN	uit	–	Include the name of the foreground sequence strip in image metadata
Stamp Render Time	BOOLEAN	aan	–	Include the render time in image metadata
Stamp Note Text	STRING	–	–	Custom text to appear in the stamp note
Stamp Output	BOOLEAN	uit	–	Render the stamp info text in the rendered image
Stamp Labels	BOOLEAN	aan	–	Display stamp labels ("Camera" in front of camera name, etc.)
Metadata Input	ENUM	SCENE	Scene, Sequencer Strips	Where to take the metadata from
Stamp Peak Memory	BOOLEAN	aan	–	Include the peak memory usage in image metadata
Stamp Hostname	BOOLEAN	uit	–	Include the hostname of the machine that rendered the frame
Font Size	INT	12	8 – 64	Size of the font used when rendering stamp text
Text Color	FLOAT	0	0 – 1	Color to use for stamp text
Background	FLOAT	0	0 – 1	Color to use behind stamp text
Sequencer Preview Shading	ENUM	SOLID	Wireframe, Solid, Material Preview, Rendered	Display method used in the sequencer view
Override Scene Settings	BOOLEAN	uit	–	Use workbench render settings from the sequencer scene, instead of each individual scene used in the strip
Render Single Layer	BOOLEAN	uit	–	Only render the active layer. Only affects rendering from the interface, ignored for rendering from command line.
Render Views	COLLECTION	–	–
Render Views	COLLECTION	–	–
Multiple Views	BOOLEAN	uit	–	Use multiple views in the scene
Setup Stereo Mode	ENUM	STEREO_3D	Stereo 3D, Multi-View
Engine	ENUM	BLENDER_EEVEE	EEVEE	Engine to use for rendering
Multiple Engines	BOOLEAN	uit	–	More than one rendering engine is available
Use Spherical Stereo	BOOLEAN	uit	–	Active render engine supports spherical stereo rendering
Use Simplify	BOOLEAN	uit	–	Enable simplification of scene for quicker preview renders
Simplify Subdivision	INT	6	0 – 6	Global maximum subdivision level
Simplify Child Particles	FLOAT	1	0 – 1	Global child particles percentage
Simplify Subdivision	INT	0	0 – 6	Global maximum subdivision level during rendering
Simplify Child Particles	FLOAT	0	0 – 1	Global child particles percentage during rendering
Simplify Volumes	FLOAT	1	0 – 1	Resolution percentage of volume objects in viewport
Mesh Normals	BOOLEAN	uit	–	Skip computing custom normals and face corner normals for displaying meshes in the viewport
Simplify	BOOLEAN	uit	–	Simplify Grease Pencil drawing
Playback Only	BOOLEAN	uit	–	Simplify Grease Pencil only during animation playback
Antialiasing	BOOLEAN	aan	–	Use Antialiasing to smooth stroke edges
Fill	BOOLEAN	aan	–	Display fill strokes in the viewport
Modifiers	BOOLEAN	aan	–	Display modifiers
Shader Effects	BOOLEAN	aan	–	Display Shader Effects
Layers Tinting	BOOLEAN	aan	–	Display layer tint
Persistent Data	BOOLEAN	uit	–	Keep render data around for faster re-renders and animation renders, at the cost of increased memory usage
Line Thickness Mode	ENUM	ABSOLUTE	Absolute, Relative	Line thickness mode for Freestyle line drawing
Line Thickness	FLOAT	1	0 – 10000	Line thickness in pixels
Compositor Device	ENUM	CPU	CPU, GPU	Set how compositing is executed
Compositor Precision	ENUM	AUTO	Auto, Full	The precision of compositor intermediate result
Compositor Denoise Node Device	ENUM	AUTO	Auto, CPU, GPU	The device to use to process the denoise nodes in the compositor
Compositor Preview Denoise Quality	ENUM	BALANCED	High, Balanced, Fast	The quality used by denoise nodes during viewport and interactive compositing if the nodes' quality option is set to Follow Scene
Compositor Final Denoise Quality	ENUM	HIGH	High, Balanced, Fast	The quality used by denoise nodes during the compositing of final renders if the nodes' quality option is set to Follow Scene

Uitleg · 52.4

De drie knoppen die je in de praktijk aanraakt

4/7

Van de tientallen instellingen hierboven zijn er drie die je bij vrijwel elk project echt gebruikt. Eerst Render Engine: EEVEE Next voor snelle, interactieve previews en de meeste real-time-achtige werk, Cycles wanneer fysisch correcte reflecties, caustics of een langzamere maar preciezere render nodig zijn. Tweede: Samples, apart voor viewport en render — hoog genoeg om ruis weg te werken, niet hoger, want elke verdubbeling kost ongeveer een verdubbeling van de rendertijd.

Derde: Film > Transparent als je een render zonder achtergrond nodig hebt (bv. voor compositing), en Performance > Threads als je machine met andere software moet delen tijdens het renderen.

shot-render-drie-knoppenRender Engine, Samples en Film Transparent — de drie knoppen die het vaakst worden aangeraakt.

Naslag · 52.5

Cycles-renderinstellingen

5/7

Deze instellingen verschijnen zodra Render Engine op Cycles staat. Rechtstreeks uit Blender 5.1 uitgelezen.

Cycles-renderinstellingen
Instelling	Type	Standaard	Bereik	Wat hij doet (tooltip uit Blender)
Name	STRING	–	–	Unique name used in the code and scripting, can be re-defined in Python sub-classes if needed
Device	ENUM	CPU	CPU, GPU Compute	Device to use for rendering
Open Shading Language	BOOLEAN	uit	–	Use Open Shading Language
Pause Preview	BOOLEAN	uit	–	Pause all viewport preview renders
Use Denoising	BOOLEAN	aan	–	Denoise the rendered image
Denoiser	ENUM			Denoise the image with the selected denoiser. For denoising the image after rendering
Denoising Prefilter	ENUM	ACCURATE	None, Fast, Accurate	Prefilter noisy guiding (albedo and normal) passes to improve denoising quality when using OpenImageDenoise
Denoising Quality	ENUM	HIGH	High, Balanced, Fast	Overall denoising quality when using OpenImageDenoise
Denoising Input Passes	ENUM	RGB_ALBEDO_NORMAL	None, Albedo, Albedo and Normal	Passes used by the denoiser to distinguish noise from shader and geometry detail
Denoise on GPU	BOOLEAN	uit	–	Perform denoising on GPU devices configured in the system tab in the user preferences. This is significantly faster than on CPU, but requires additional GPU memory. When large scenes need more GPU memory, this option can be disabled
Use Viewport Denoising	BOOLEAN	uit	–	Denoise the image in the 3D viewport
Viewport Denoiser	ENUM			Denoise the image after each preview update with the selected denoiser
Viewport Denoising Prefilter	ENUM	FAST	None, Fast, Accurate	Prefilter noisy guiding (albedo and normal) passes to improve denoising quality when using OpenImageDenoise
Viewport Denoising Quality	ENUM	BALANCED	High, Balanced, Fast	Overall denoising quality when using OpenImageDenoise
Viewport Denoising Input Passes	ENUM	RGB_ALBEDO	None, Albedo, Albedo and Normal	Passes used by the denoiser to distinguish noise from shader and geometry detail
Start Denoising	INT	1	0 – 16777216	Sample to start denoising the preview at
Denoise Preview on GPU	BOOLEAN	aan	–	Perform denoising on GPU devices configured in the system tab in the user preferences. This is significantly faster than on CPU, but requires additional GPU memory. When large scenes need more GPU memory, this option can be disabled
Samples	INT	4096	1 – 16777216	Number of samples to render for each pixel
Viewport Samples	INT	1024	1 – 16777216	Number of samples to render in the viewport, unlimited if 0
Use Sample Subset	BOOLEAN	uit	–	Render a subset of the specified max samples. Typically used for distributed rendering across multiple devices
Sample Subset Offset	INT	0	0 – 16777216	0-based index of sample to start rendering from
Sample Subset Length	INT	2048	1 – 16777216	The number of samples to render in this subset
Time Limit	FLOAT	0	0 – onbegrensd	Limit the render time (excluding synchronization time). Zero disables the limit
Sampling Pattern	ENUM			Random sampling pattern used by the integrator
Scrambling Distance	FLOAT	1	0 – 1	Reduce randomization between pixels to improve GPU rendering performance, at the cost of possible rendering artifacts if set too low
Scrambling Distance viewport	BOOLEAN	uit	–	Uses the Scrambling Distance value for the viewport. Faster but may flicker
Automatic Scrambling Distance	BOOLEAN	uit	–	Automatically reduce the randomization between pixels to improve GPU rendering performance, at the cost of possible rendering artifacts
Layer Samples	ENUM	USE	Use, Bounded, Ignore	How to use per view layer sample settings
Light Sampling Threshold	FLOAT	0.01	0 – 1	Probabilistically terminate light samples when the light contribution is below this threshold (more noise but faster rendering). Zero disables the test and never ignores lights
Use Adaptive Sampling	BOOLEAN	aan	–	Automatically reduce the number of samples per pixel based on estimated noise level
Adaptive Sampling Threshold	FLOAT	0.01	0.001 – 1	Noise level step to stop sampling at, lower values reduce noise at the cost of render time. Zero for automatic setting based on number of AA samples
Adaptive Min Samples	INT	0	0 – 4096	Minimum AA samples for adaptive sampling, to discover noisy features before stopping sampling. Zero for automatic setting based on noise threshold
Use Adaptive Sampling	BOOLEAN	aan	–	Automatically reduce the number of samples per pixel based on estimated noise level, for viewport renders
Adaptive Sampling Threshold	FLOAT	0.1	0.001 – 1	Noise level step to stop sampling at, lower values reduce noise at the cost of render time. Zero for automatic setting based on number of AA samples, for viewport renders
Adaptive Min Samples	INT	0	0 – 4096	Minimum AA samples for adaptive sampling, to discover noisy features before stopping sampling. Zero for automatic setting based on noise threshold, for viewport renders
Direct Light Sampling	ENUM	MULTIPLE_IMPORTANCE_SAMPLING	Multiple Importance Sampling, Forward Path Tracing, Next-Event Estimation	The type of strategy used for sampling direct light contributions
Light Tree	BOOLEAN	aan	–	Sample multiple lights more efficiently based on estimated contribution at every shading point
Min Light Bounces	INT	0	0 – 1024	Minimum number of light bounces. Setting this higher reduces noise in the first bounces, but can also be less efficient for more complex geometry like curves and volumes
Min Transparent Bounces	INT	0	0 – 1024	Minimum number of transparent bounces. Setting this higher reduces noise in the first bounces, but can also be less efficient for more complex geometry like curves and volumes
Reflective Caustics	BOOLEAN	aan	–	Use reflective caustics, resulting in a brighter image (more noise but added realism)
Refractive Caustics	BOOLEAN	aan	–	Use refractive caustics, resulting in a brighter image (more noise but added realism)
Filter Glossy	FLOAT	1	0 – 10	Adaptively blur glossy shaders after blurry bounces, to reduce noise at the cost of accuracy
Guiding	BOOLEAN	uit	–	Use path guiding for sampling paths. Path guiding incrementally learns the light distribution of the scene and guides path into directions with high direct and indirect light contributions
Deterministic	BOOLEAN	aan	–	Makes path guiding deterministic which means renderings will be reproducible with the same pixel values every time. This feature slows down training
Guiding Distribution Type	ENUM	PARALLAX_AWARE_VMM	Parallax-Aware VMM, Directional Quad Tree, VMM	Type of representation for the guiding distribution
Directional Sampling Type	ENUM	RIS	Diffuse Product MIS, Re-sampled Importance Sampling, Roughness-based	Type of the directional sampling used for guiding
Surface Guiding	BOOLEAN	aan	–	Use guiding when sampling directions on a surface
Surface Guiding Probability	FLOAT	0.5	0 – 1	The probability of guiding a direction on a surface
Volume Guiding	BOOLEAN	aan	–	Use guiding when sampling directions inside a volume
Training Samples	INT	128	1 – onbegrensd	The maximum number of samples used for training path guiding. Higher samples lead to more accurate guiding, however may also unnecessarily slow down rendering once guiding is accurate enough. A value of 0 will continue training until the last sample
Volume Guiding Probability	FLOAT	0.5	0 – 1	The probability of guiding a direction inside a volume
Guide Direct Light	BOOLEAN	aan	–	Consider the contribution of directly visible light sources during guiding
Use MIS Weights	BOOLEAN	aan	–	Use the MIS weight to weight the contribution of directly visible light sources during guiding
Guiding Roughness Threshold	FLOAT	0.05	0 – 1	The minimal roughness value of a material to apply guiding
Max Bounces	INT	12	0 – 1024	Total maximum number of bounces
Diffuse Bounces	INT	4	0 – 1024	Maximum number of diffuse reflection bounces, bounded by total maximum
Glossy Bounces	INT	4	0 – 1024	Maximum number of glossy reflection bounces, bounded by total maximum
Transmission Bounces	INT	12	0 – 1024	Maximum number of transmission bounces, bounded by total maximum
Volume Bounces	INT	0	0 – 1024	Maximum number of volumetric scattering events
Transparent Max Bounces	INT	8	0 – 1024	Maximum number of transparent bounces. This is independent of maximum number of other bounces
Step Rate	FLOAT	1	0.1 – 10	Globally adjust detail for volume rendering, on top of automatically estimated step size. Higher values reduce render time, lower values render with more detail
Step Rate	FLOAT	1	0.1 – 10	Globally adjust detail for volume rendering, on top of automatically estimated step size. Higher values reduce render time, lower values render with more detail
Max Steps	INT	1024	2 – 65536	Maximum number of steps through the volume before giving up, to avoid extremely long render times with big objects or small step sizes
Biased	BOOLEAN	uit	–	Default volume rendering uses null scattering, which is unbiased and has less artifacts, but could be noisier. Biased option uses ray marching, with controls for steps size and max steps
Dicing Rate	FLOAT	1	0.5 – 1000	Multiplier for per object adaptive subdivision size
Viewport Dicing Rate	FLOAT	8	0.5 – 1000	Multiplier for per object adaptive subdivision size in the viewport
Max Subdivisions	INT	12	0 – 16	Stop subdividing when this level is reached even if the dicing rate would produce finer tessellation
Offscreen Dicing Scale	FLOAT	4	1 – 25	Multiplier for dicing rate of geometry outside of the camera view. The dicing rate of objects is gradually increased the further they are outside the camera view. Lower values provide higher quality reflections and shadows for off screen objects, while higher values use less memory
Exposure	FLOAT	1	0 – 1024	Image brightness scale
Transparent Glass	BOOLEAN	uit	–	Render transmissive surfaces as transparent, for compositing glass over another background
Transparent Roughness Threshold	FLOAT	0.1	0 – 1	For transparent transmission, keep surfaces with roughness above the threshold opaque
Filter Type	ENUM	BLACKMAN_HARRIS	Box, Gaussian, Blackman-Harris	Pixel filter type
Filter Width	FLOAT	1.5	0.01 – 10	Pixel filter width
Seed	INT	0	0 – onbegrensd	Seed value for integrator to get different noise patterns
Use Animated Seed	BOOLEAN	uit	–	Use different seed values (and hence noise patterns) at different frames
Clamp Direct	FLOAT	0	0 – 100000000	If non-zero, the maximum value for a direct sample, higher values will be scaled down to avoid too much noise and slow convergence at the cost of accuracy
Clamp Indirect	FLOAT	10	0 – 100000000	If non-zero, the maximum value for an indirect sample, higher values will be scaled down to avoid too much noise and slow convergence at the cost of accuracy
Viewport BVH Type	ENUM	DYNAMIC_BVH	Dynamic BVH, Static BVH	Choose between faster updates, or faster render
Use Spatial Splits	BOOLEAN	uit	–	Use BVH spatial splits: longer builder time, faster render
Use Curves BVH	BOOLEAN	aan	–	Use special type BVH optimized for curves (uses more ram but renders faster)
Use Compact BVH	BOOLEAN	uit	–	Use compact BVH structure (uses less ram but renders slower)
BVH Time Steps	INT	0	0 – 16	Split BVH primitives by this number of time steps to speed up render time in cost of memory
Bake Type	ENUM	COMBINED	Combined, Ambient Occlusion, Shadow, Position, Normal, UV, Roughness, Emission, Environment, Diffuse, Glossy, Transmission	Type of pass to bake
Use Camera Cull	BOOLEAN	uit	–	Allow objects to be culled based on the camera frustum
Camera Cull Margin	FLOAT	0.1	0 – 5	Margin for the camera space culling
Use Distance Cull	BOOLEAN	uit	–	Allow objects to be culled based on the distance from camera
Cull Distance	FLOAT	50	0 – onbegrensd	Cull objects which are further away from camera than this distance
Shutter Type	ENUM	NONE	None, Top-Bottom	Type of rolling shutter effect matching CMOS-based cameras
Rolling Shutter Duration	FLOAT	0.1	0 – 1	Scanline "exposure" time for the rolling shutter effect
Viewport Texture Limit	ENUM	OFF	No Limit, 128, 256, 512, 1024, 2048, 4096, 8192	Limit texture size used by viewport rendering
Render Texture Limit	ENUM	OFF	No Limit, 128, 256, 512, 1024, 2048, 4096, 8192	Limit texture size used by final rendering
Fast GI Approximation	BOOLEAN	uit	–	Approximate diffuse indirect light with background tinted ambient occlusion. This provides fast alternative to full global illumination, for interactive viewport rendering or final renders with reduced quality
Fast GI Method	ENUM	REPLACE	Replace, Add	Fast GI approximation method
AO Bounces	INT	1	0 – 1024	After this number of light bounces, use approximate global illumination. 0 disables this feature
AO Bounces Render	INT	1	0 – 1024	After this number of light bounces, use approximate global illumination. 0 disables this feature
Auto Tile	BOOLEAN	aan	–	Deprecated, tiling is always enabled
Tile Size	INT	2048	8 – 8192	Render high resolution images in tiles of this size, to reduce memory usage. Tiles are cached to disk while rendering to save memory
AVX2	BOOLEAN	aan	–
SSE42	BOOLEAN	aan	–
BVH Layout	ENUM	EMBREE	BVH2, Embree
Adaptive Compile	BOOLEAN	uit	–	Compile the Cycles GPU kernel with only the feature set required for the current scene
OptiX Module Debug	BOOLEAN	uit	–	Load OptiX module in debug mode: lower logging verbosity level, enable validations, and lower optimization level
Adaptive Compile	BOOLEAN	uit	–	Compile the Cycles GPU kernel with only the feature set required for the current scene
Adaptive Compile	BOOLEAN	uit	–	Compile the Cycles GPU kernel with only the feature set required for the current scene

Uitleg · 52.6

Denoising: minder samples nodig door te filteren

6/7

Denoising (ruisonderdrukking) filtert overgebleven ruis weg na het renderen, zodat je met minder samples toch een schoon beeld krijgt. Cycles heeft een apart denoiser voor de viewport (snel, minder precies) en voor de finale render (trager, gebruikt extra Data Passes zoals albedo en normal om details te bewaren). Zet denoising in de render altijd aan tenzij je zelf in de Compositor een eigen denoise-node met meer controle opbouwt.

EEVEE Next heeft zijn eigen Raytracing-denoiser die los staat van de Cycles-instellingen hierboven — de naam is gelijk, de instelling niet.

shot-render-denoiseHetzelfde beeld met en zonder denoising, bij een laag samples-aantal.

Zelf doen · 52.7

Zelf proberen: CPU naar GPU, en het verschil zien

7/7

Open het meegeleverde bestand, zet de render engine op Cycles, render eerst met Device op CPU en dan op GPU Compute, en vergelijk de rendertijd die Blender onderaan het render-venster toont.

1Open blends/demo_render_settings.blend.
2Ga naar Render Properties en zet Render Engine op Cycles.
3Render met F12, Device op CPU. Noteer de tijd.
4Zet Device op GPU Compute (System-tab in Preferences moet een GPU-backend hebben ingesteld) en render opnieuw.
5Vergelijk: bij een klein aantal samples is het verschil klein; bij honderden samples wordt het groot.

Gelukt als…Twee rendertijden die je kan vergelijken, en een render engine die voortaan bewust gekozen wordt in plaats van standaard te blijven staan.

Sleep om rond te draaien

001

demo_render_settings.blend

DemoBol.01DemoBol.02DemoBol.03DemoBol.04DemoBol.05DemoBol.061 materialen1.944 vertices

Download 1,6 MB
